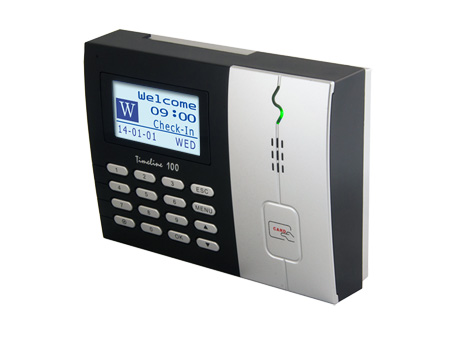

FingerTec TimeLine100
**Discontinue model.
It is time to scrap the outdated manual punch card system and adopt an efficient RFID card time attendance system with TimeLine 100, specifically designed for office use. Simple to install and manage, TimeLine 100 offers large storage capacity, which is able to match office of various sizes especially when paired with TCMS V3, a Windows-based time attendance software complete with various reports for attendance management. On top, TimeLine 100 easily integrates with other FingerTec terminals in one centralized system as long as they have a card feature, allowing for customization within a workplace
| SPECIFICATIONS | |
| MODEL | TimeLine 100 |
| SURFACE FINISHING | Acrylonitrile butadiene styrene (ABS) |
| TYPE OF ANTENNA | RFID |
| MICROPROCESSOR | 400 MHz |
| MEMORY | 8 MB flash memory & 32 MB SDRAM |
| ALGORITHM | BioBridge VX 9.0 |
| PUSH TECHNOLOGY | Yes |
| PRODUCT DIMENSION (L X W X H), mm | 190 x 50 x 140 |
| STORAGE | |
| • Cards | 10000 |
| • Transactions | 30000 |
| ENROLLMENT & VERIFICATION | |
| • Methods | Card & password |
| • Card per user ID | 1 |
| • Reading distance, mm | 40 ~ 80 (RFID, HID), 30 ~ 50 (Mifare) |
| • Verification time (sec) | < 1 |
| CARD TECHNOLOGY | |
| • RFID: 64-bit, 125kHz, RF output power (EN300-330) | Yes |
| • MIFARE: MFIS50/S70, 13.56MHz | Make to order |
| • HID: HID 1325, 26-bit, 125kHz | Make to order |
| COMMUNICATIONS | |
| • Method | TCP/IP, USB disk (Optional: RS232 & RS485) |
| • Baud rates | 9600, 19200, 38400, 57600, 115200 |
| OPERATING ENVIRONMENT | |
| • Temperature (°C) | 0 ~ 45 |
| • Humidity (%) | 20 ~ 80 |
| • Power input | DC 5V 2A |
| TIME ATTENDANCE | |
| • Siren | Buit in and external |
| • Work codes | Yes |
| MULTIMEDIA | |
| • Voice | Yes |
| • Display | Black and white |
| • Short messaging | Yes |
| VOICE / DISPLAY LANGUAGE (TERMINAL) | English (Standard), Arabic, Indonesian, Chinese (Simplified), Cantonese / Chinese (Traditional), Thai, Vietnamese, Spanish, Portuguese (Portugal), French, Russian, German, Turkish & Persian Other languages are available upon request. |
| SOFTWARE LANGUAGE | Arabic, Bulgarian, Chinese (Simplified), Chinese (Traditional), English, German, Hindi, Indonesian, Kurdish, Malay, Portuguese, Russian, Spanish, Thai, Vietnamese |
