Product View

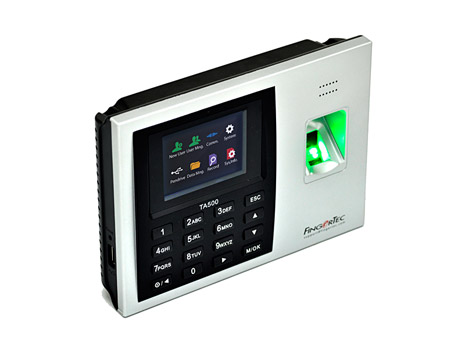

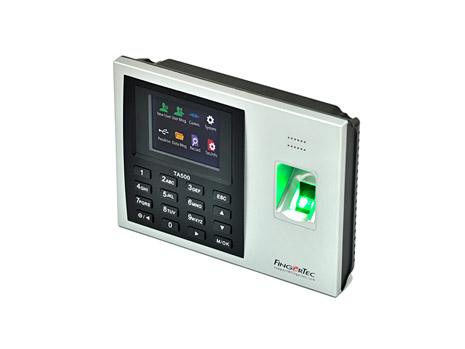

FingerTec TA500
If you are looking for an affordable, reliable and simple biometrics time attendance clock, TA500 is your ultimate choice. It can contain up to 2000 fingerprint templates and 80,000 transaction logs in its flash memory at any given time. TA500 verifies fingerprint, password and it accepts embedment of card technology upon request. Equipped with the most commonly used IP communication method and USB flash disk, TA500 is the most powerful simple attendance system for your small and medium offices.
Specification
| MODEL | TA500 | ||
| SURFACE FINISHING | Acrylonitrile butadiene styrene (ABS) & polycarbonate (PC) | ||
| TYPE OF SCANNER | Non-coated optical scanner | ||
| PROCESSOR | 360 MHz | ||
| MEMORY | 128 MB flash memory & 16 MB SDRAM | ||
| ALGORITHM | BioBridge VX10.0 | ||
| PUSH TECHNOLOGY | Yes | ||
| PRODUCT DIMENSION (L X W X H), mm | 184mm x 38mm x 134mm | ||
| STORAGE | |||
| • Fingerprint templates | 2,000 (Max 1,000 user ID) | ||
| • Transaction logs | 80,000 | ||
| ENROLLMENT & VERIFICATION | |||
| • Methods | Fingerprint (1:1, 1:N) & password | ||
| • Recommended fingerprint per user ID | 2 (Max 1000 user ID) | ||
| • Fingerprint placement | Any angle | ||
| • Verification time (sec) | < 1 | ||
| • FAR (%) | < 0.0001 | ||
| • FRR (%) | < 1 | ||
| COMMUNICATIONS | |||
| • Method | TCP/IP, USB Disk | ||
| OPERATING ENVIRONMENT | |||
| • Temperature (°C) | 0 ~ 45 | ||
| • Humidity (%) | 20 ~ 80 | ||
| • Power input | DC12V1.5A | ||
| TIME ATTENDANCE | |||
| • Siren | Yes | ||
| • Work codes | Yes | ||
| MULTIMEDIA | |||
| • Voice | Yes | ||
| • Display | 2.8" 3k colour TFT screen | ||
| • Internal backup battery | Yes (2 hours working, 4 hours standby) | ||
| VOICE / DISPLAY LANGUAGE (TERMINAL) | English (Standard), Arabic, Indonesian, Vietnamese, Spanish, Portuguese (Portugal), Russian, Thai, Turkish, French and Persian. Other languages are available upon request. |
||
| SOFTWARE |
|
||
| APPLICATION (optional) |
|
||
