FingerTec TA200Plus

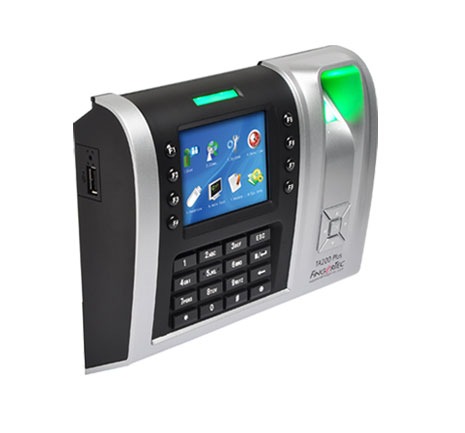

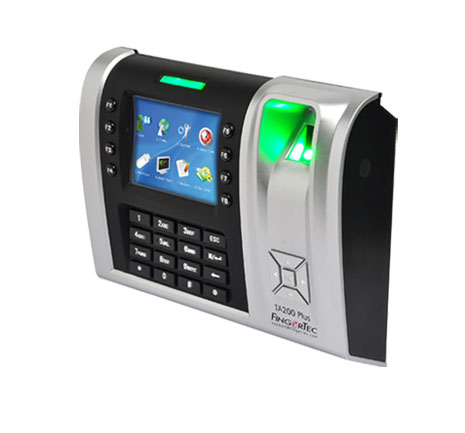

FingerTec TA200 Plus is an astounding hi-tech fingerprint time attendance device with impressive design. Geared with an exceptional storage capacity and equipped with an accurate fingerprint scanning algorithm, TA200 Plus gives you amazing and convenient features such as work codes and short message display for either personal or public recipients for effective staff communication. The terminal also comes convenient with multiple options for you to sync your devices to the bundled software, FingerTec TCMS V3 for further processing of attendance data to ease report generating and payroll processes.
Specification
| MODEL | TA200 Plus | ||
| SURFACE FINISHING | Acrylonitrile butadiene styrene (ABS) | ||
| TYPE OF SCANNER | Non-coated optical scanner | ||
| MICROPROCESSOR | 800 MHz | ||
| MEMORY | 128MB flash memory and 64MB SDRAM | ||
| ALGORITHM | BioBridge VX 10.0 | ||
| PUSH TECHNOLOGY | Yes | ||
| PRODUCT DIMENSION (L X W X H), mm | 200 x 56 x 160 | ||
| STORAGE | |||
| • Fingerprint templates | 10,000 | ||
| • Transaction logs | 200,000 | ||
| ENROLLMENT & VERIFICATION | |||
| • Methods | Fingerprint (1:1, 1:N), Password | ||
| • Recommended fingerprint per user ID | 2 | ||
| • Fingerprint placement | Any angle | ||
| • Verification time (sec) | < 1 | ||
| • FAR (%) | < 0.0001 | ||
| • FRR (%) | < 1 | ||
| COMMUNICATIONS | |||
| • Method | TCP/IP, USB Disk (Optional: RS232, RS485) | ||
| • Baud rates | 9600, 19200, 38400, 57600, 115200 | ||
| OPERATING ENVIRONMENT | |||
| • Temperature (°C) | 0 ~ 45 | ||
| • Humidity (%) | 20 ~ 80 | ||
| • Power input | DC 12V 3A | ||
| TIME ATTENDANCE | |||
| • Siren | Built-in (Optional-External) | ||
| • Work codes | Yes | ||
| MULTIMEDIA | |||
| • Voice | Yes | ||
| • Display | 3.5” 65k colour TFT screen | ||
| • Photo-ID | Yes | ||
| • Short messaging | Yes | ||
| VOICE / DISPLAY LANGUAGE (TERMINAL) | English (Standard), Arabic, Chinese (Simplified/Traditional), Indonesian, Portuguese (Portugal) and Spanish. Other languages are available upon request. |
||
| SOFTWARE |
|
||
| APPLICATION (optional) |
|
||
