Product View

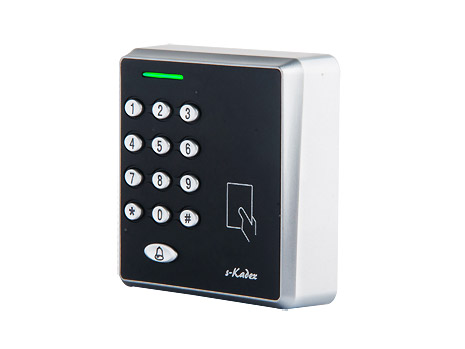

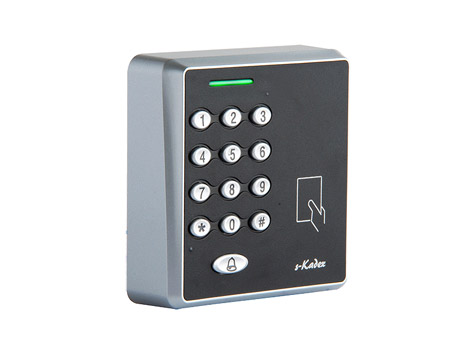

FingerTec s-Kadex

s-Kadex, the latest addition to the Kadex family is the simplest and most compact electronic card reader from FingerTec yet! This latest automated access control device is able to function without any additional software, making it the perfect stand-alone solution for small businesses and homes where there is no need for tracking attendance. s-Kadex supports card IDs, 4-digit passwords, or a combination of both and despite its small dimension, all of the vital functions from the Kadex family are still present to maximize s-Kadex’s value for money. The device’s size also enables it to be placed easily in any tight corner, making it a good fit for any situation.

Specifications
MODEL s-Kadex
SURFACE FINISHING Acrylonitrile Butadiene Styrene (ABS)
TYPE OF ANTENNA Card
MICROPROCESSOR 400 MHz
MEMORY 32MB flash memory
ALGORITHM BioBridge VX 10.0
PRODUCT DIMENSION (L X W X H), mm 88 x 25 x 88
STORAGE
• Cards 500
• Passwords 8 sets (max length 4-digits per password)
ENROLLMENT & VERIFICATION
• Methods Card or password
• Password length (digits) Max 4
• Verification time (sec) < 1
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz, RF output power (EN300-330) Yes
• MIFARE: MFIS50/S70, 13.56MHz Made to order
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 12V 3A
ACCESS CONTROL
• EM lock driving output DC 12V / relay output
• Alarm output NO only
• Door sensor Yes (NO/NC)
GROUP VERIFY TYPE
• Password only Yes
• Card only Yes
• Card or password Yes
• Card and password Yes
