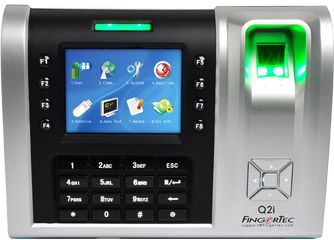

FingerTec Q2i
FingerTec Q2i is a premium security device with advanced time attendance and access control features. Containing a large storage capacity with precision fingerprint scanning algorithm, the Q2i is a suitable time attendance and access control solution for small to large-scaled organizations, especially when paired with t he Ingress software, FingerTec’s extensive access control monitoring application. With useful features such and workcodes an short message display, the Q2i is versatile with many customizable features, and several options for you to sync your terminal with a connected PC.
Specification
| MODEL | Q2i | ||
| SURFACE FINISHING | Acrylonitrile butadiene styrene (ABS) | ||
| TYPE OF SCANNER | Non-coated optical scanner | ||
| PROCESSOR | 800 MHz | ||
| MEMORY | 256 MB flash memory & 64 MB SDRAM | ||
| ALGORITHM | BioBridge VX 9.0 / VX 10.0 | ||
| PUSH TECHNOLOGY | Yes | ||
| PRODUCT DIMENSION (L X W X H), mm | 200 x 56 x 160 | ||
| STORAGE | |||
| • Fingerprint templates | 10,000 | ||
| • Transaction logs | 200,000 | ||
| ENROLLMENT & VERIFICATION | |||
| • Methods | Fingerprint (1:1, 1:N), password | ||
| • Recommended fingerprint per user ID | 2 | ||
| • Fingerprint placement | Any angle | ||
| • Verification time (sec) | < 1 | ||
| • FAR (%) | < 0.0001 | ||
| • FRR (%) | < 1 | ||
| COMMUNICATIONS | |||
| • Method | TCP/IP, RS232, RS485, USB Disk | ||
| • Baud rates | 9600, 19200, 38400, 57600, 115200 | ||
| • Wiegand | 26-bit input/output | ||
| OPERATING ENVIRONMENT | |||
| • Temperature (°C) | 0 ~ 45 | ||
| • Humidity (%) | 20 ~ 80 | ||
| • Power input | DC 12V 3A | ||
| TIME ATTENDANCE | |||
| • Siren | Built-in (Optional-External) | ||
| • Work codes | Yes | ||
| MULTIMEDIA | |||
| • Voice | Yes | ||
| • Display | 3.5” 65k colour TFT screen | ||
| • Photo-ID | Yes | ||
| • Short messaging | Yes | ||
| ACCESS CONTROL | |||
| • EM lock driving output | DC12V3A/ Relay output | ||
| • Alarm output | NO/NC | ||
| • Anti-passback | Yes | ||
| VOICE / DISPLAY LANGUAGE (TERMINAL) | English (Standard), Arabic, Chinese (Simplified/Traditional), Indonesian, Portuguese (Portugal)and Spanish. Other languages are available upon request. |
||
| SOFTWARE |
|
||
| APPLICATION (optional) |
|
||
