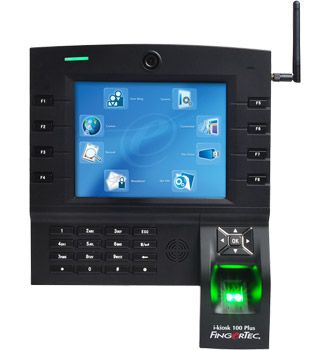

FingerTec i-Kiosk 100 Plus

The i-Kiosk 100 Plus goes above and beyond the call of duty by not only functioning as a door access and attendance device, but also as a medium of communication to those around it. Its full colour touch screen display which is mainly used for configuration, can also be used for displaying short messages, videos, and music for the purpose of company branding and advertising. Integrated with the device is also a high quality lens that captures a photo of the user during verification, whether successful or not. In addition of a USB flashdisk connection, this device also provides the option of syncing data through a Wi-Fi connection. Complete with the availability of short cut key functions, this model of biometric device proves to be user-friendly, customer-friendly and a value for its money.

Tag: FingerTec Discontinue
Brochure
Share This To
Specifications
MODEL i-Kiosk 100 Plus
SURFACE FINISHING Acrylonitrile Butadiene Styrene (ABS)
TYPE OF SCANNER Optical fingerprint scanner
MICROPROCESSOR 600 MHz
MEMORY 256MB flash memory & 64MB SDRAM
ALGORITHM BioBridge VX 9.0 / VX 10.0
PRODUCT DIMENSION (L X W X H), mm 260 x 70 x 320
STORAGE
• Fingerprint templates 10000
• Card 10000
• Transaction 200000
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:1, 1:N), Password & Card
• Recommended fingerprint per user ID 2
• Fingerprint placement Any angle
• Verification time (sec) < 1
• FAR (%) < 0.0001
• FRR (%) < 1
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz, RF output power (EN300-330) Yes
• MIFARE: MFIS50/S70, 13.56MHz Made to order
• HID: HID 1326, 26-bit, 125kHz Made to order
COMMUNICATIONS
• Method TCP/IP, RS232, RS485, USB disk & WiFi
• Baud rates 9600, 19200, 38400, 57600, 115200
• Wiegand 26-bit input/output
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 12V 3A
TIME ATTENDANCE
• Siren Built- in
• Work codes Yes
MULTIMEDIA
• Voice Yes
• Display 8.0” 65k color TFT touch screen panel
• Short messaging Yes
• Music playback Yes
• Movie playback Yes
• Internal backup battery Yes (DC12V, 2000mAh)
ACCESS CONTROL
• EM lock driving output DC 12V 3A / Relay output
• Alarm output NO / NC
• Antipassback Yes
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard), Arabic, Indonesian, Spanish, Persian. Other languages are available upon request.

This Product Specifications
Brand
FingerTec
Function
Time Attendance
Door Access
Device Type
Terminal
Verification
Fingerprint
RFID Card
Password
Card Type
ID Card (125KHz)
IC Card (13.56MHz)
Communication
WiFi
TCP/IP
USB
Power Type
12V DC
Software Type
Desktop Application
Software
FingerTec Ingress
Installation Environment
Indoor
Highlight Spec
Touch Screen
Color Screen
