Product View

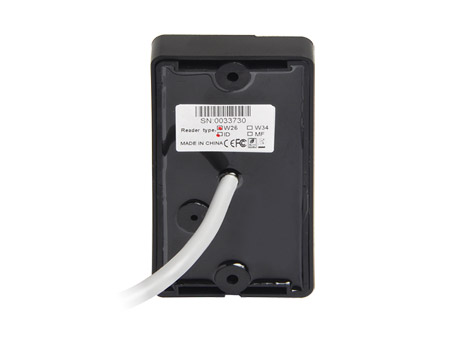

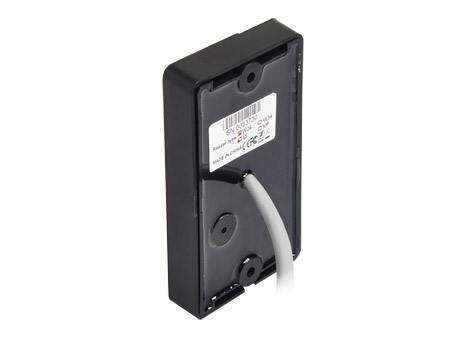

FingerTec i-kadex
The i-Kadex is a slave reader in the Kadex series that works with a master terminal to create a complete IN-OUT access system with card functionality. Designed to be stylishly in sync with the Kadex series, the i-Kadex can be mixed and matched with any master terminal in the series, providing a more cost-effective option for an exit terminal. The i-Kadex is easy to install and manage, offering a simple yet advanced access control system for your premises.
Specification
| MODEL | i-Kadex | ||
| SURFACE FINISHING | Polycarbonate | ||
| TYPE OF ANTENNA | RFID | ||
| MICROPROCESSOR | Managed by primary | ||
| MEMORY | |||
| ALGORITHM | |||
| PRODUCT DIMENSION (L X W X H), mm | 55 x 15 x 100 | ||
| STORAGE | |||
| • Card | Storage in primary | ||
| • Transaction logs | |||
| ENROLLMENT & VERIFICATION | |||
| • Methods | Card | ||
| • Card per user ID | Managed by primary | ||
| • Reading distance, mm | 40 ~ 80 (RFID), 30 ~ 50 (Mifare) | ||
| • Verification time (sec) | Managed by primary | ||
| CARD TECHNOLOGY | |||
| • RFID: 64-bit, 125kHz | Yes | ||
| • MIFARE: MFIS50/S70, 13.56MHz | Made to order | ||
| COMMUNICATIONS | |||
| • Method | Wiegand | ||
| • Wiegand | 26 bit output | ||
| OPERATING ENVIRONMENT | |||
| • Temperature (°C) | -10 ~ 70 | ||
| • Humidity (%) | 20 ~ 80 | ||
| • Power input | DC 12V 1A | ||
| ACCESS CONTROL | |||
| • EM lock driving output | Managed by primary | ||
| • Alarm output | |||
| • Anti-passback | |||
| SOFTWARE |
|
||
