Product View

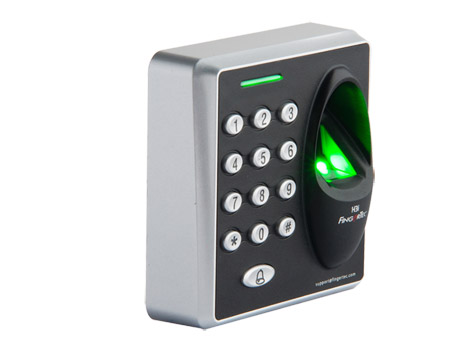

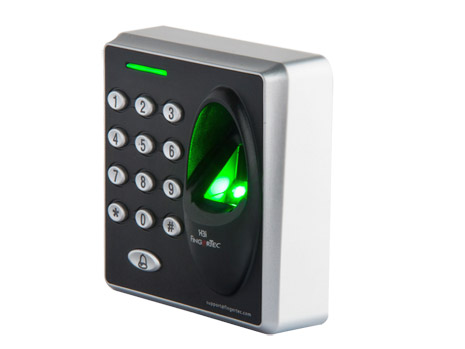

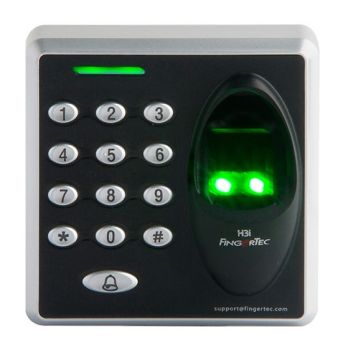

FingerTec H3i

H3i is simply the most compact and independent electronic reader from FingerTec yet! This latest automated access control device is able to function without any additional software, making it the perfect stand-alone solution for small businesses and homes where there is no need for tracking attendance. On top of its stylish design and sleek layout, H3i is a master terminal that supports verification via fingerprints, card IDs, 4-digit passwords, or a combination of any two of the three methods. Installations are also a breeze and can be done almost anywhere because of H3i’s convenient dimensions. Compact but still capable of doing almost everything a regular-sized biometrics device can, FingerTec H3i simply proves that size, yet again, does not matter.

Tag: FingerTec FingerPrint
Brochure
Share This To
Specifications
SURFACE FINISHING Acrylonitrile Butadiene Styrene (ABS)
TYPE OF SCANNER Optical fingerprint scanner
MICROPROCESSOR 400 MHz
MEMORY 32MB flash memory
ALGORITHM BioBridge VX 10.0
PRODUCT DIMENSION (L X W X H), mm 88 x 25 x 88
STORAGE
• Fingerprint templates 200
• Cards 500
• Passwords 8 sets (max length 4-digits per password)
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:1, 1:N), card or password
• Recommended fingerprint per user ID 1
• Fingerprint placement Any angles
• Password length (digit) Max 4
• Verification time (sec) < 1
• FAR (%) < 0.0001
• FRR (%) < 1
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz, RF output power (EN300-330) Yes
• MIFARE: MFIS50/S70, 13.56MHz Made to order
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 12V 3A
ACCESS CONTROL
• EM lock driving output DC 12V / relay output
• Alarm output NO only
• Door sensor Yes (NO/NC)
GROUP VERIFY TYPE
• Password only Yes
• Card only Yes
• Fingerprint only Yes
• Fingerprint or card or password Yes
• Card and password Yes
• Fingerprint and password Yes

This Product Specifications
Brand
FingerTec
Function
Door Access
Device Type
Terminal
Verification
Fingerprint
RFID Card
Password
Card Type
ID Card (125KHz)
Communication
None
Power Type
12V DC
Software
None
Installation Environment
Indoor
Highlight Spec
Standalone Operation
Physical Keypad
