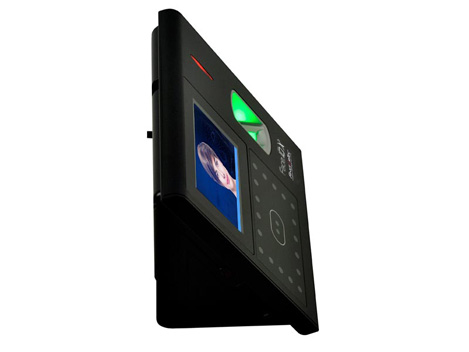

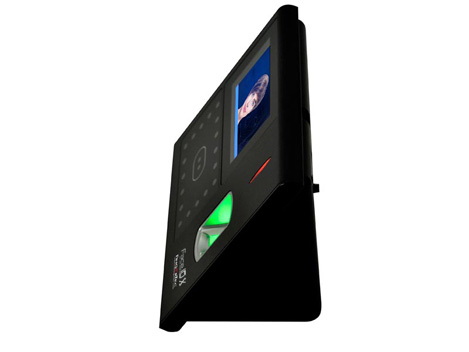

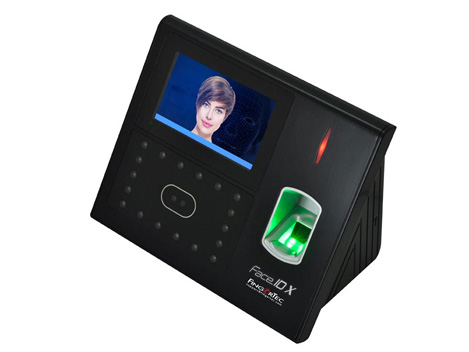

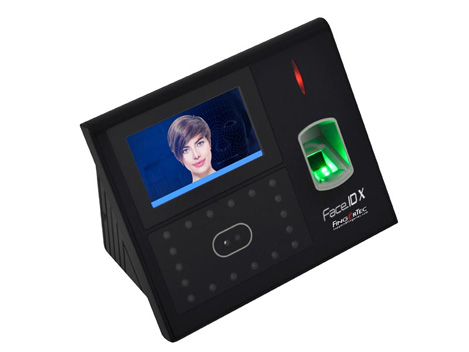

FingerTec Face IDX
The latest addition of Face ID series has arrived and this time around the face recognition machine is made bigger and better!
Face ID X is a biometric verification terminal that contains two types of advanced biometrics technologies with dual cameras, 1.2
GHz Single Core microprocessor, 1.0GB flash memory, 1.0GB SDRAM, various types of data communication and an enormous data
storage capacity; all of which to provide a swift and accurate biometrics verification. The device can contain up to 30K face
recognition with 1:1 verification, 10K fingerprint templates, 10K cards, and a huge 1 million transaction data at any given time. Face ID X is designed to provide users with a convenient and contactless verification in addition to multiple verification options. With the mighty capacity in which Face ID X offers, the face recognition machine is thus taken to another level of power!
Specification
| MODEL | Face ID X | ||
| SURFACE FINISHING | Acrylonitrile Butadiene Styrene (ABS) & Acrylic | ||
| TYPE OF SCANNER | Hi-res infrared camera & fingerprint scanner | ||
| MICROPROCESSOR | 1.2GHz | ||
| MEMORY | 1.0GB SDRAM/ 1.0GB flash | ||
| ALGORITHM | Face BioBridge VX8.0, Fingerprint BioBridge VX9.0 / 10.0 | ||
| PUSH TECHNOLOGY | Yes | ||
| PRODUCT DIMENSION (L X W X H), mm | 194 x 110 x 145 | ||
| STORAGE | |||
| • Fingerprint templates | 10,000 | ||
| • Face templates | 3,000 (1:N), 30,000(1:1) | ||
| • Transaction logs | 1,000,000 | ||
| ENROLLMENT & VERIFICATION | |||
| • Methods | Face (1:1, 1:N), fingerprint (1:1, 1:N), password | ||
| • Recommended fingerprint per user ID | 2 | ||
| • Fingerprint placement | Any angle | ||
| • Verification time – Face, sec | <2 | ||
| • Verification time – Fingerprint, sec | < 1 | ||
| • Fingerprint | FAR < 0.0001%, FRR < 0.1% | ||
| • Face | FAR < 0.01%, FRR < 0.1% | ||
| COMMUNICATIONS | |||
| • Method | TCP/IP, RS232, RS485, USB Disk | ||
| • Baud rates | 9600, 19200, 38400, 57600, 115200 | ||
| • Wiegand | 26-bit output | ||
| OPERATING ENVIRONMENT | |||
| • Temperature (°C) | 0 ~ 45 | ||
| • Humidity (%) | 20 ~ 80 | ||
| • Power input | DC 12V 3A | ||
| TIME ATTENDANCE | |||
| • Siren | Internal and external | ||
| • Work codes | Yes | ||
| • Fast Transaction Checking | Yes | ||
| MULTIMEDIA | |||
| • Display | 4.3” 65K color TFT Touch Screen Panel | ||
| • Photo-ID | Yes | ||
| • Short messaging | Yes | ||
| • Day Light Saving Timer | Yes | ||
| • Internal Backup Battery | Yes (DC 12V, 2000mAh) | ||
| ACCESS CONTROL | |||
| • EM lock driving output | DC12V / Relay output | ||
| • Alarm output | NO/NC | ||
| VOICE / DISPLAY LANGUAGE (TERMINAL) | English (Standard), Arabic, Indonesian, Chinese Traditional / Simplified, Cantonese, Vietnamese, Spanish, Portuguese (Portugal), Turkish and Persian. Other languages are available upon request. | ||
| SOFTWARE |
|
||
