Product View

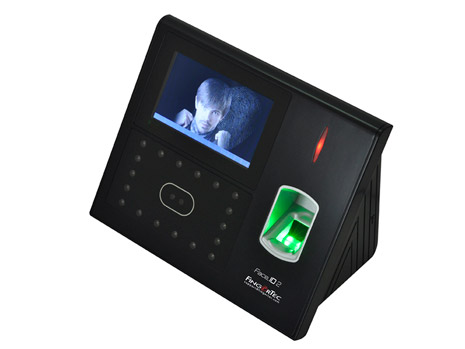

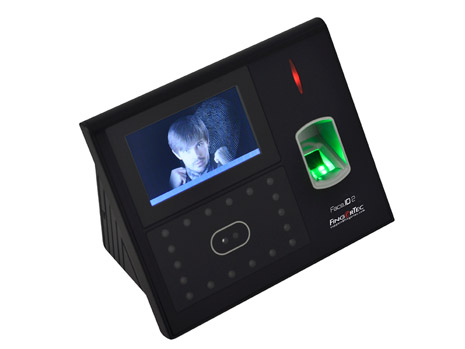

FingerTec Face ID2 FMM
Face ID 2 FMM is a dual function biometric verification terminal that uses face and fingerprint technology in one single system. User only needs to look at the camera and get his verification done in split seconds. Fingerprint, card, and password are the other credential options available in Face ID 2 FMM. If you require a contactless and effective biometrics solution, choose FingerTec Face ID 2 FMM!
Specification
| MODEL | Face ID 2 | ||
| SURFACE FINISHING | Acrylonitrile Butadiene Styrene (ABS) & Acrylic | ||
| TYPE OF SCANNER | Hi-res infrared camera & fingerprint scanner | ||
| PROCESSOR | 1.2GHz | ||
| MEMORY | 128MB Nand flash & 64MB Nand flash | ||
| ALGORITHM | Face BioBridge VX8.0, Fingerprint BioBridge VX9.0 / 10.0 | ||
| PRODUCT DIMENSION (L X W X H), mm | 194 x 110 x 145 | ||
| STORAGE | |||
| • Fingerprint templates | 10000 | ||
| • Face templates | 1200 | ||
| • Transaction logs | 200000 | ||
| ENROLLMENT & VERIFICATION | |||
| • Methods | Face (1:1, 1:N), fingerprint (1:1, 1:N), password | ||
| • Recommended fingerprint per user ID | 2 | ||
| • Fingerprint placement | Any angle | ||
| • Verification time – Face, sec | <2 | ||
| • Verification time – Fingerprint, sec | < 1 | ||
| • Fingerprint | FAR < 0.0001%, FRR < 0.1% | ||
| • Face | FAR < 0.01%, FRR < 0.1% | ||
| COMMUNICATIONS | |||
| • Method | TCP/IP, RS232, RS485, USB disk | ||
| • Baud rates | 9600, 19200, 38400, 57600, 115200 | ||
| • Wiegand | 26-bit output | ||
| OPERATING ENVIRONMENT | |||
| • Temperature (°C) | 0 ~ 45 | ||
| • Humidity (%) | 20 ~ 80 | ||
| • Power input | DC 12V 3A | ||
| TIME ATTENDANCE | |||
| • Siren | Internal and external | ||
| • Work codes | Yes | ||
| • Fast Transaction Checking | Yes | ||
| MULTIMEDIA | |||
| • Display | 4.3” 65K color TFT Touch Screen Panel | ||
| • Photo-ID | Yes | ||
| • Short messaging | Yes | ||
| • Day Light Saving Timer | Yes | ||
| • Internal Backup Battery | Yes (DC 12V, 2000mAh) | ||
| ACCESS CONTROL | |||
| • EM lock driving output | DC12V / Relay output | ||
| • Alarm output | NO/NC | ||
| VOICE / DISPLAY LANGUAGE (TERMINAL) | English (Standard), Arabic, Indonesian, Chinese Traditional / Simplified, Cantonese, Vietnamese, Spanish, Portuguese (Portugal), Turkish, Persian. Other languages are available upon request. | ||
| SOFTWARE |
|
||
