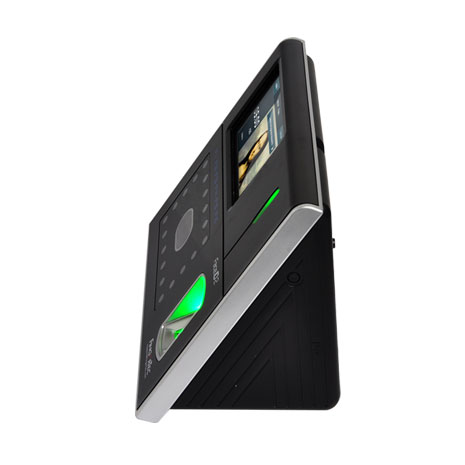

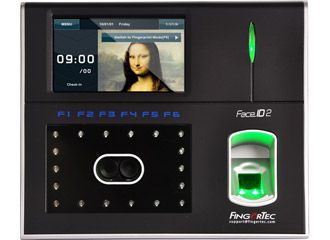

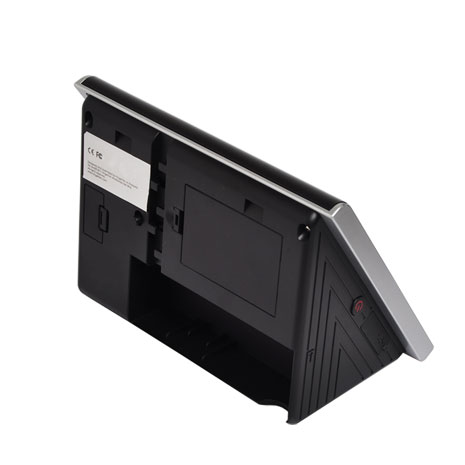

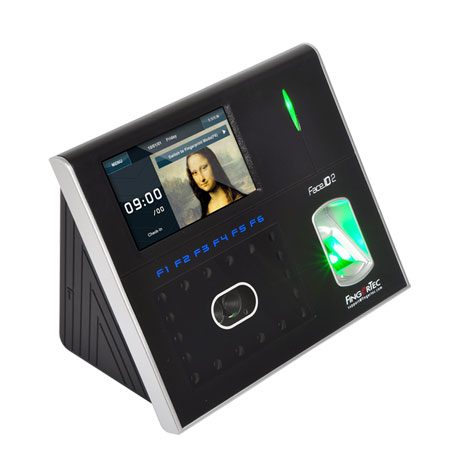

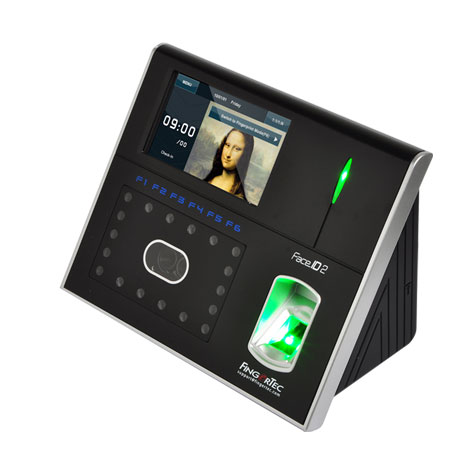

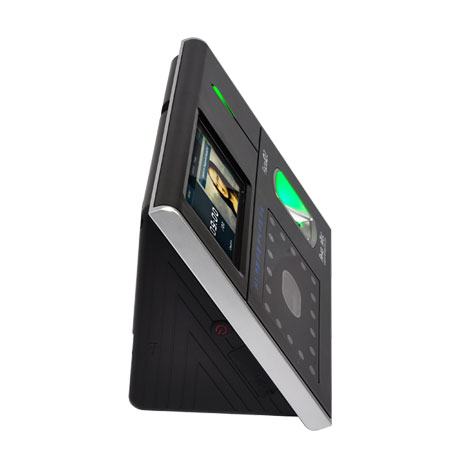

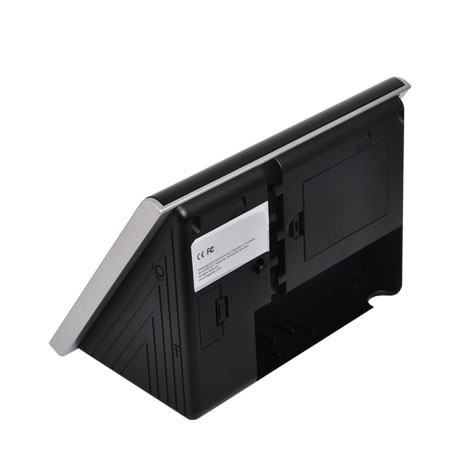

FingerTec Face ID2

Face ID 2 is a new device for access control and time attendance that not only verifies identity using fingerprint matching, but also uses a new technology that can run a facial recognition match. This means, Face ID 2 will run a scan of your face using its high resolution infrared camera, and match it to the scan that was previously memorized into the system. It is not just in the movies anymore, this is reality! Face ID 2 brings contactless verification, tighter security and a user-friendly interface all into one compact device.

Brochure

SPECIFICATIONS
MODEL	Face ID 2
SURFACE FINISHING	Acrylonitrile butadiene styrene (ABS) & acrylic
TYPE OF SCANNER	High resolution infrared camera & fingerprint scanner
MICROPROCESSOR	800 MHz
MEMORY	256 MB Flash Memory & 128 MB SDRAM
ALGORITHM	Face BioBridge VX 8.0, Fingerprint BioBridge VX 9.0 / VX 10.0
PRODUCT DIMENSION (L X W X H), mm	207 x 120 x 145
STORAGE
• Fingerprint templates	10000
• Face templates	1200
• Cards	10000
• Transactions	200000
ENROLLMENT & VERIFICATION
• Methods	Face (1:1, 1:N), fingerprint (1:1, 1:N), card & password
• Recommended fingerprint per user ID	< 2
• Fingerprint placement	Any angle
• Verification time (sec)	Face < 2, Fingerprint < 1
• Fingerprint	FAR < 0.0001%, FRR < 0.1% < 1
• Face	FAR < 0.01%, FRR < 0.1%
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz, RF output power (EN300-330)	Yes
• MIFARE: MFIS50/S70, 13.56MHz	Make to order
• HID: HID 1325, 26-bit, 125kHz	Make to order
COMMUNICATIONS
• Method	TCP/IP, RS232, RS485, USB disk, (Optional WiFi, GPRS & 3G)
• Baud rates	9600, 19200, 38400, 57600, 115200
• Wiegand	26-bit output
OPERATING ENVIRONMENT
• Temperature (°C)	0 ~ 45
• Humidity (%)	20 ~ 80
• Power input	12V DC 3A
TIME ATTENDANCE
• Siren	Built-in and external
• Work codes	Yes
• Fast transaction checking	Yes
MULTIMEDIA
• Display	4.3” 65K color TFT touch screen panel
• Photo-ID	Yes
• Short messaging	Yes
• Day light saving timer	Yes
• Internal backup battery	Yes (DC 12V, 2000mAh)
ACCESS CONTROL
• EM lock driving output	DC 12V / relay output
• Alarm output	NO/NC
VOICE / DISPLAY LANGUAGE (TERMINAL)	English (Standard), Arabic, Indonesian, Chinese Traditional / Simplified, Cantonese, Vietnamese, Spanish, Portuguese (Portugal), Turkish, Persian. Other languages are available upon request.
