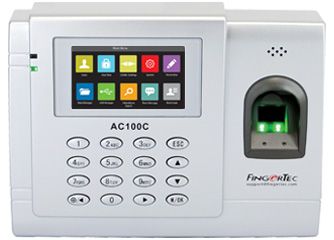

FingerTec AC100C
AC100C is built for cost-effectiveness, so that startups, smaller companies or those with a smaller budget set aside for time management system can still deploy the solution to better their operation. This device holds an amazing capacity for fingerprint templates and transaction records, plus it can be synchronized with the TCMS V3 software for easier data management. AC100C is a great choice for practicality at an affordable cost.
Specification
| MODEL | AC100C | ||
| SURFACE FINISHING | Acrylonitrile butadiene styrene (ABS) | ||
| TYPE OF SCANNER | Non-coated optical scanner | ||
| MICROPROCESSOR | 800 MHz | ||
| MEMORY | 256 MB flash memory & 128 MB SDRAM | ||
| ALGORITHM | BioBridge VX 9.0 / VX 10.0 | ||
| PUSH TECHNOLOGY | Yes | ||
| PRODUCT DIMENSION (L X W X H), mm | 195 x 48 x 144 | ||
| STORAGE | |||
| • Fingerprint templates | 8,000 | ||
| • Transaction logs | 200,000 | ||
| ENROLLMENT & VERIFICATION | |||
| • Methods | Fingerprint (1:1, 1:N) & password | ||
| • Recommended fingerprint per user ID | 2 | ||
| • Fingerprint placement | Any angle | ||
| • Verification time (sec) | < 1 | ||
| • FAR (%) | < 0.0001 | ||
| • FRR (%) | < 1 | ||
| COMMUNICATIONS | |||
| • Method | TCP/IP, USB Disk (Optional: RS232 & RS485) | ||
| • Baud rates | 9600, 19200, 38400, 57600, 115200 | ||
| OPERATING ENVIRONMENT | |||
| • Temperature (°C) | 0 ~ 45 | ||
| • Humidity (%) | 20 ~ 80 | ||
| • Power input | DC 5V 2A | ||
| TIME ATTENDANCE | |||
| • Fast transaction checking | Yes | ||
| • Work codes | Yes | ||
| MULTIMEDIA | |||
| • Voice | Yes | ||
| • Display | 3.0” 65k colour TFT screen | ||
| • Short message | Yes | ||
| • Photo ID | Yes | ||
| VOICE / DISPLAY LANGUAGE (TERMINAL) | English (Standard), Arabic, Indonesian, Chinese (Simplified), Cantonese / Chinese (Traditional), Thai, Vietnamese, Spanish, Portuguese (Portugal), French, Russian, German, Turkish and Persian Other languages are available upon request. |
||
| SOFTWARE |
|
||
| APPLICATION (optional) |
|
||
