Product View

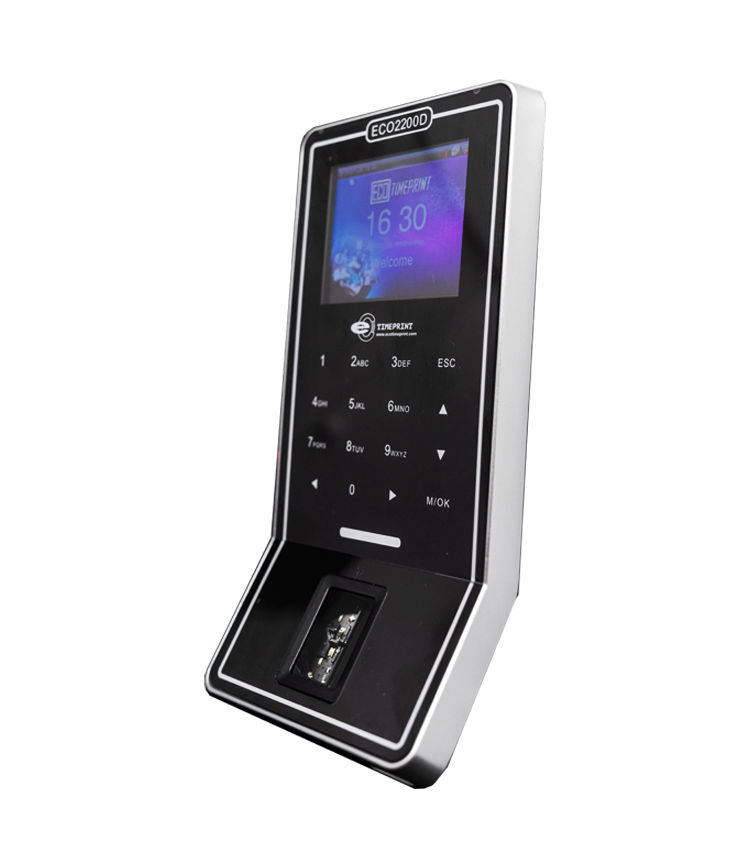

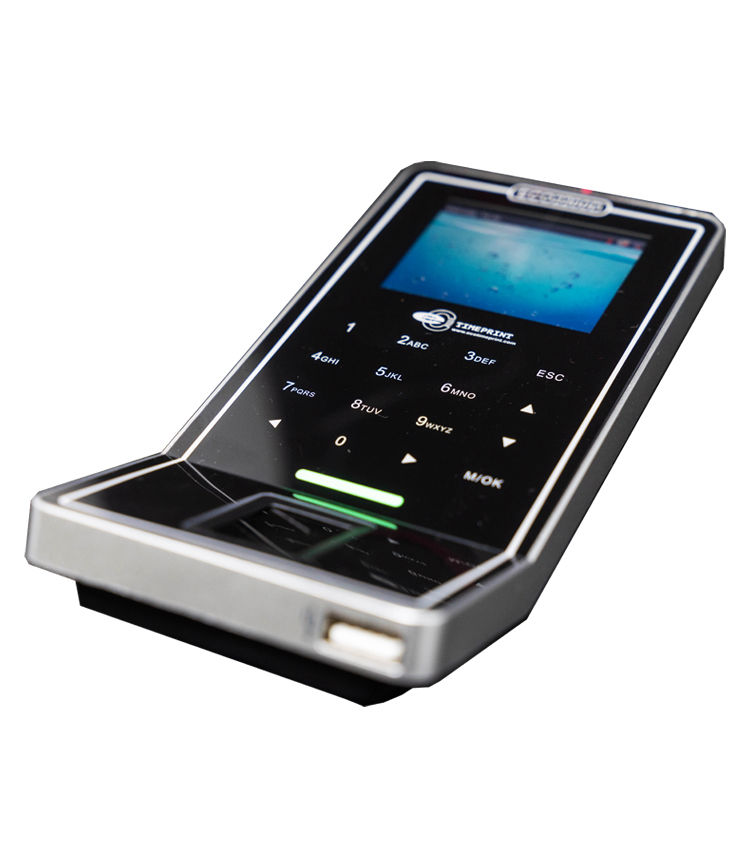

ECOTimePrint ECO2200D
ECO2200D is an ultra-thin fingerprint time attendance and access control terminal which offers unparalleled performance with advanced algorithm for reliability. It provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any access control that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi are also available that the device can be used in different networks.
SPECIFICATIONS
| Model | ECO 2200D |
|---|---|
| Screen | 2.4 inch TFT Color Screen |
| Communication | Wifi, TCP/IP, USB Flash Disk |
| Fingerprint Template | 3,000 |
| Records Capacity | 30,000 |
| Algorithm version | 10.0 |
| Authentication Method | Fingerprint/ Password/ RFID Card |
| Identification Time | <1S |
| Authentication Mode | 1:1, 1:N |
| Access Control Interface | Wiegand 26/34, Door Lock, Siren, Release Button, Doorbell, Door Sensor |
| Professional Access Function | door by multilevel verification, anti-pass back |
| Bell | Built-in timing bell |
| Operation Mode | Off-line/Online |
| Power | DC12V/3A |
| Operating Environment | 0℃ - 45℃, Humidity: 20% - 80% |
| Dimension(L*W*H) | 158.5*78*19.4mm |
