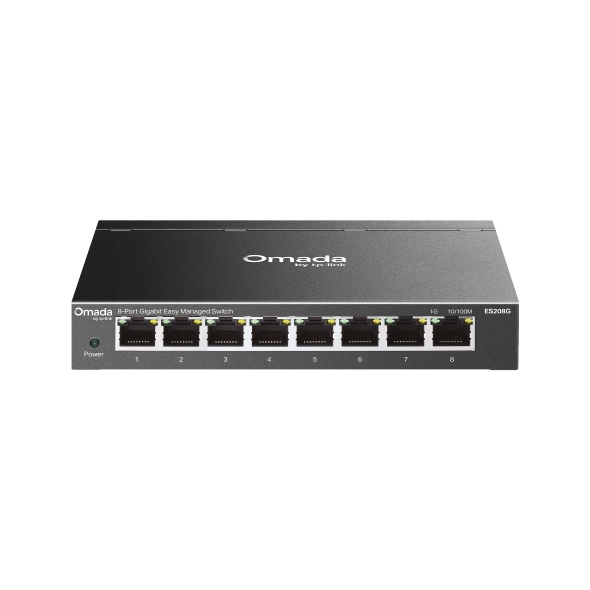

Omada 8-Port Gigabit Switch | ES208G
8× 10/100/1000Mbps RJ45 ports
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app†
VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
Automatic Loop Prevention and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design
| HARDWARE FEATURES | |
|---|---|
| Interface | • 8× 10/100/1000 Mbps RJ45 Ports • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mounting |
| Physical Security Lock | √ |
| Power Supply | DC Power Adapter (Output: 5V DC / 0.6A) |
| Net Weight | 0.45 kg (0.99 lbs) |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Surge Protection | ±6 kV |
| PERFORMANCE | |
|---|---|
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • 802.1p DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Link Aggregation (Static Link Aggregation; Up to 2 aggregation groups and up to 4 ports per group) • Loopback Detection • Flow Control- 802.3x Flow Control • Mirroring (Port Mirroring; One-to-One; Many-to-One; Ingress/Egress/Both) • Port Statistics (Port Mirror Status; Traffic Statistics) • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
|---|---|
| Omada App | Yes. Requires the use of Omada Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • ES208G • Power Adapter • Rubber Feet • Installation Guide |
| Environment | • Operating Temperature: -5℃~45℃ (23℉~113℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
