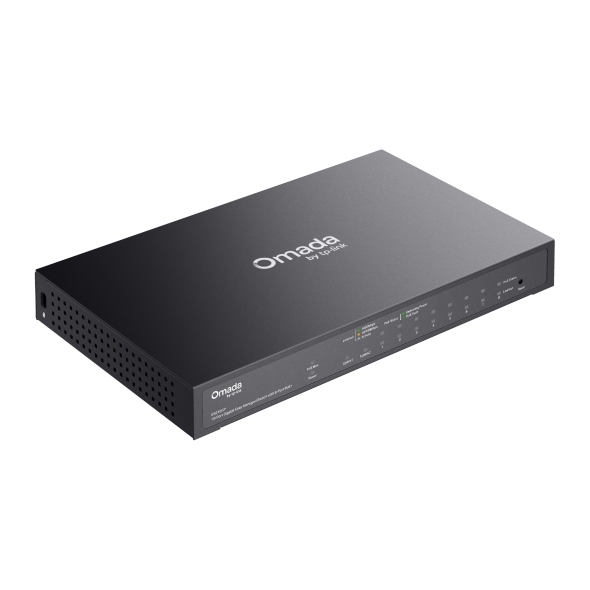

Omada 10-Port Gigabit Switch with 8-Port PoE | ES210GP

9× 10/100/1000Mbps RJ45 ports (8× 802.3af/at-compliant PoE+)
1× Gigabit SFP/RJ45 Combo port
63W Power Budget, with up to 30W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app†
Up to 250m PoE**, Remote Camera Reboot†, QoS, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

Brochure

HARDWARE FEATURES
Interface	• 8× 10/100/1000 Mbps PoE+ RJ45 Ports (802.3af/at-compliant PoE+) • 1× 10/100/1000 Mbps RJ45 Port • 1× Gigabit SFP/RJ45 Combo Port • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless
Installation	• Desktop • Wall Mount
Physical Security Lock	√
Power Supply	AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC/1.31A)
PoE Ports (RJ45)	• Standard: 802.3af/at PoE+ compliant • PoE Ports: 8 ports • PoE Budget: 63W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery^‡ • Up to 250m PoE transmission distance**
Dimensions ( W x D x H )	8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Surge Protection	±6kV

PERFORMANCE
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB
Switching Capacity	20 Gbps
Packet Forwarding Rate	14.88 Mpps
MAC Address Table	8K

SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS^△ • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control
L2 Features	• Link Aggregation - Static Link Aggregation - Up to 4 aggregation groups and up to 6 ports per group • Port Isolation • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • IEEE 802.3az EEE
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave / Report Suppression
VLAN	• 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller (Requires built-in version 6.1.0 or later) • Omada Hardware Controller (Requires built-in version 6.1.0 or later) • Omada Software Controller (Requires built-in version 6.1.0 or later)
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• HTTPS/HTTP • DHCP Client • Cable Diagnostics • ONVIF*** • Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Unified Configuration^†

OTHERS
Certification	FCC, CE, RoHS
Package Content	• ES210GP • Power Adapter • Power Cord • Mounting Feet • Installation Guide
Environment	• Operating Temperature: -5℃~40℃ (23℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
