Product View
FingerTec Kadex

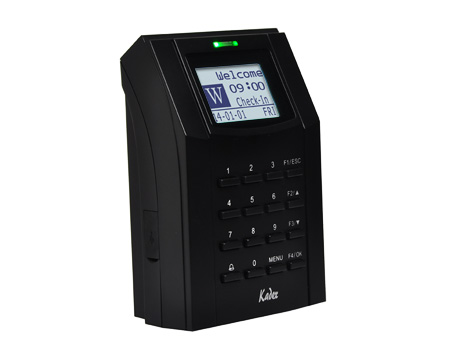

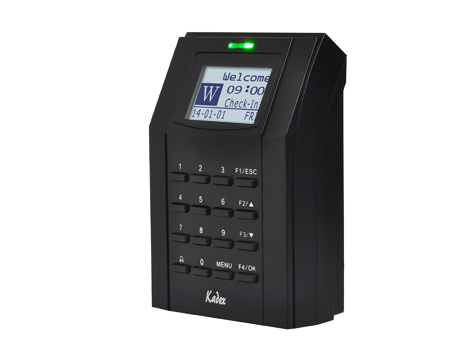

Kadex is an access control & time attendance card reader system that supports card ID, a 5-digit password, or a combination of both. The entire Kadex series consists of Kadex, m-Kadex which is a simpler version of Kadex without an LCD screen and keypad, and the exit slave readers, i-Kadex and k-Kadex. A combination of either the Kadex or the m-Kadex with the exit slave readers makes a complete and cost effective in-out door access system for those who prefer the traditional punch card system with a modern twist.
Specification
| MODEL | Kadex |
| SURFACE FINISHING | Acrylonitrile butadiene styrene (ABS) |
| TYPE OF ANTENNA | RFID |
| PROCESSOR | 400 MHz |
| MEMORY | 8 MB flash memory & 32 MB SDRAM |
| PUSH TECHNOLOGY | Yes |
| PRODUCT DIMENSION (L X W X H), mm | 92 x 49 x 137 |
| STORAGE | |
| • Card | 30,000 |
| • Transaction logs | 50,000 |
| ENROLLMENT & VERIFICATION | |
| • Methods | Card & password |
| • Card per user ID | 1 |
| • Reading distance, mm | 40 ~ 80 (RFID, HID), 30 ~ 50 (Mifare) |
| • Verification time (sec) | < 1 |
| CARD TECHNOLOGY | |
| • RFID: 64-bit, 125kHz | Yes |
| • MIFARE: MFIS50/S70, 13.56MHz | Made to order |
| • HID: HID 1325, 26-bit, 125kHz | Made to order |
| COMMUNICATIONS | |
| • Method | TCP/IP, RS232, RS485, USB disk |
| • Baud rates | 9600, 19200, 38400, 57600, 115200 |
| • Wiegand | 26-bit input / output |
| OPERATING ENVIRONMENT | |
| • Temperature (°C) | 0 ~ 45 |
| • Humidity (%) | 20 ~ 80 |
| • Power input | DC 12V 2A |
| TIME ATTENDANCE | |
| • Work codes | Yes |
| MULTIMEDIA | |
| • Greeting voice | Yes |
| • Display | Black & White |
| • Short messaging | Yes |
| ACCESS CONTROL | |
| • EM lock driving output | DC 12V 3A / relay output |
| • Alarm output | NO/NC |
| • Anti-passback | Yes |
| VOICE / DISPLAY LANGUAGE (TERMINAL) | English (Standard), Arabic, Chinese (Simplified/Traditional), Indonesian, Portuguese (Portugal) and Spanish. Other languages are available upon request. |
