FingerTec s-Kadex (Discontinued Models)

s-Kadex, the latest addition to the Kadex family is the simplest and most compact electronic card reader from FingerTec yet! This latest automated access control device is able to function without any additional software, making it the perfect stand-alone solution for small businesses and homes where there is no need for tracking attendance. s-Kadex supports card IDs, 4-digit passwords, or a combination of both and despite its small dimension, all of the vital functions from the Kadex family are still present to maximize s-Kadex’s value for money. The device’s size also enables it to be placed easily in any tight corner, making it a good fit for any situation.

**Discontinued Models


Petite but Packs a Punch
s-Kadex may be small and slim, but it still has enough processing power to ensure quick verification times of less than one second and enough memory to store a whopping 30,000 transactions!
Easy Installation
s-Kadex takes minimal effort to install because of the device’s simplicity, and coupled with its compact size, can be easily placed in any location of your choice.
Completely Stand-alone Device
s-Kadex can be used as a standalone device for simple access management, making it perfect as a cost-effective and absolutely nohassle solution for your small business office or home.
Simple Management & Enrollment
The s-Kadex’s simple outlook is complimented with a simple management system. Just key in your administrator password to start enrolling or deleting data.
Clear-cut Notification of Events
A buzzer and LEDs are built-in in s-Kadex to provide clear audio and visual notifications during any events that may occur at the device.
Value for Money
Mix and match your FingerTec system with the Kadex family to give you more value for your money. The versatile family of readers will ensure the most cost-effective solution for your situation.
Adaptability for Added Security
s-Kadex is compatible with all 12VDC/relay output electromagnetic locks and can also be connected to an NO alarm to provide added security to your space.
Combine Your Verification Methods
To further secure your space, s-Kadex can accept four different combinations of card (either RFID or MiFARE) or password verification methods according to your preference.

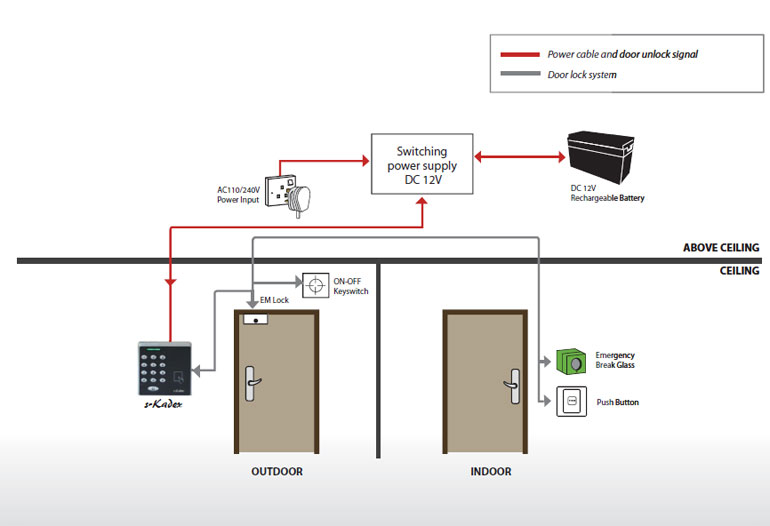

Installation Diagram
MODEL s-Kadex
SURFACE FINISHING Acrylonitrile Butadiene Styrene (ABS)
MEMORY 32MB flash memory
ALGORITHM BioBridge VX 10.0
PRODUCT DIMENSION (L X W X H), mm 88 x 25 x 88
• Cards 500
• Passwords 8 sets (max length 4-digits per password)
• Methods Card or password
• Password length (digits) Max 4
• Verification time (sec) < 1
• RFID: 64-bit, 125kHz, RF output power (EN300-330) Yes
• MIFARE: MFIS50/S70, 13.56MHz Made to order
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 12V 3A
• EM lock driving output DC 12V / relay output
• Alarm output NO only
• Door sensor Yes (NO/NC)
• Password only Yes
• Card only Yes
• Card or password Yes
• Card and password Yes
NOTE: Specifications are subject to change. Check for latest product information.
Dimension (mm)
173 (L) x 60 (W) x 135 (H)
