FingerTec H3i (Discontinued Models)

H3i is simply the most compact and independent electronic reader from FingerTec yet! This latest automated access control device is able to function without any additional software, making it the perfect stand-alone solution for small businesses and homes where there is no need for tracking attendance. On top of its stylish design and sleek layout, H3i is a master terminal that supports verification via fingerprints, card IDs, 4-digit passwords, or a combination of any two of the three methods. Installations are also a breeze and can be done almost anywhere because of H3i’s convenient dimensions. Compact but still capable of doing almost everything a regular-sized biometrics device can, FingerTec H3i simply proves that size, yet again, does not matter.

** Discontinued Models

RM0.00

Customers who bought this item also bought

Petite but Packs a Punch
H3i may be small and slim, but it still has enough processing power to ensure quick verification times of less than one second and enough memory to store a whopping 30,000 transactions!
Easy Installation
H3i takes minimal effort to install because of the device’s simplicity, and coupled with its compact size, can be easily placed in any location of your choice.

Completely Stand-alone Device
H3i can be used as a stand-alone device for simple access management, making it perfect as a cost-effective and absolutely no-hassle solution for your small business office or home.
Simple Management & Enrollment
The H3i’s simple outlook is complimented with a simple management system. Just key in your administrator password to start enrolling or deleting data.

Adaptability for Added Security
H3i is compatible with all 12VDC/ relay output electromagnetic locks and can also be connected to an NO alarm to provide added security to your space
Combine Your Verification Methods
To further secure your space, H3i can accept six different combinations of fingerprint, card (either RFID or MiFARE) or password verification methods according to your preference.

Clear-cut Notification of Events
A buzzer and LEDs are built-in in H3i to provide clear audio and visual notifications during any events that may occur at the device.
Value for Money
Mix and match your FingerTec system with the Kadex family to give you more value for your money. The versatile family of readers will ensure the most cost-effective solution for your situation.

LAYOUT PLAN

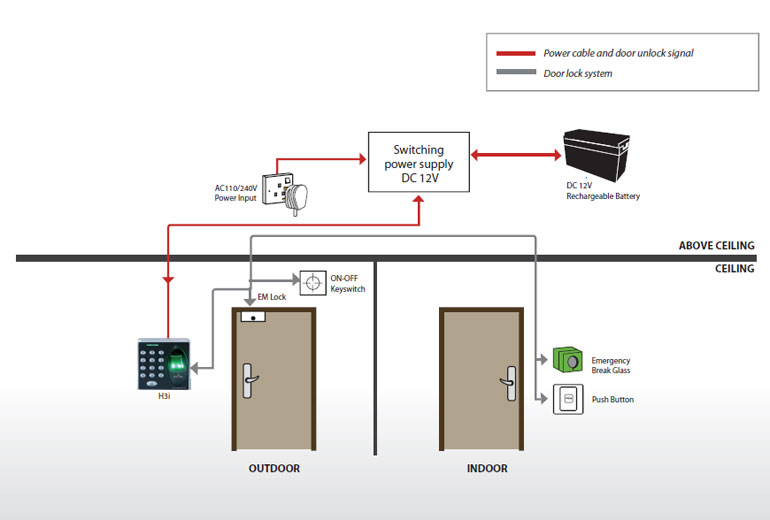

Installation Diagram
Specifications
SURFACE FINISHING Acrylonitrile Butadiene Styrene (ABS)
TYPE OF SCANNER Optical fingerprint scanner
MICROPROCESSOR 400 MHz
MEMORY 32MB flash memory
ALGORITHM BioBridge VX 10.0
PRODUCT DIMENSION (L X W X H), mm 88 x 25 x 88
STORAGE
• Fingerprint templates 200
• Cards 500
• Passwords 8 sets (max length 4-digits per password)
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:1, 1:N), card or password
• Recommended fingerprint per user ID 1
• Fingerprint placement Any angles
• Password length (digit) Max 4
• Verification time (sec) < 1
• FAR (%) < 0.0001
• FRR (%) < 1
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz, RF output power (EN300-330) Yes
• MIFARE: MFIS50/S70, 13.56MHz Made to order
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 12V 3A
ACCESS CONTROL
• EM lock driving output DC 12V / relay output
• Alarm output NO only
• Door sensor Yes (NO/NC)
GROUP VERIFY TYPE
• Password only Yes
• Card only Yes
• Fingerprint only Yes
• Fingerprint or card or password Yes
• Card and password Yes
• Fingerprint and password Yes
NOTE: Specifications are subject to change. Check http://product.fingertec.com for latest product information.

Packaging
Dimension (mm): 173 (L) x 60 (W) x 135 (H)
Weight: 0.35kg
